Crossroads Mixed-use Development

Location

507 West Broadway

Vancouver, BC

Canada

Staticmap?center=49.2633136, 123.1153516&size=175x175&scale=2&markers=color:red%7csize:small%7c49.2633136, 123
Certifications & Awards
Project Team
style="font-size: 12px;">
Play / pause
0:00
0:00
volume
menu
< previous
> next

Interview with David Dove - Principal, Perkins+Will Canada

Summary

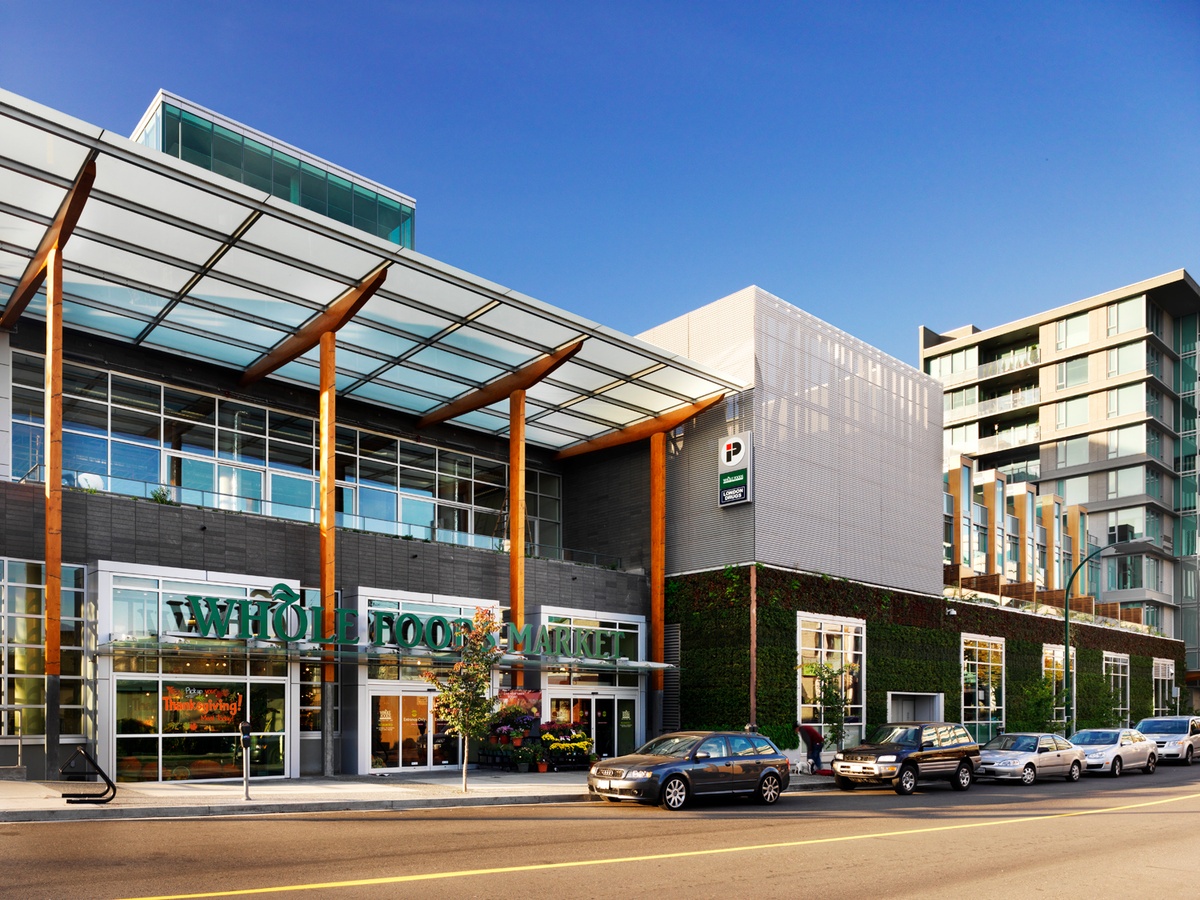

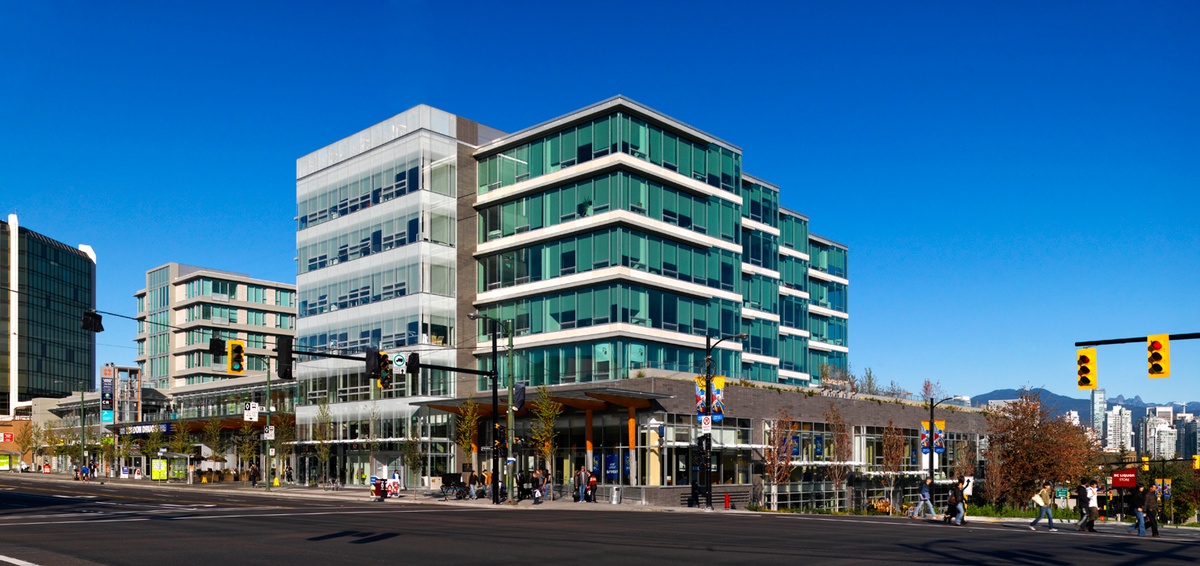

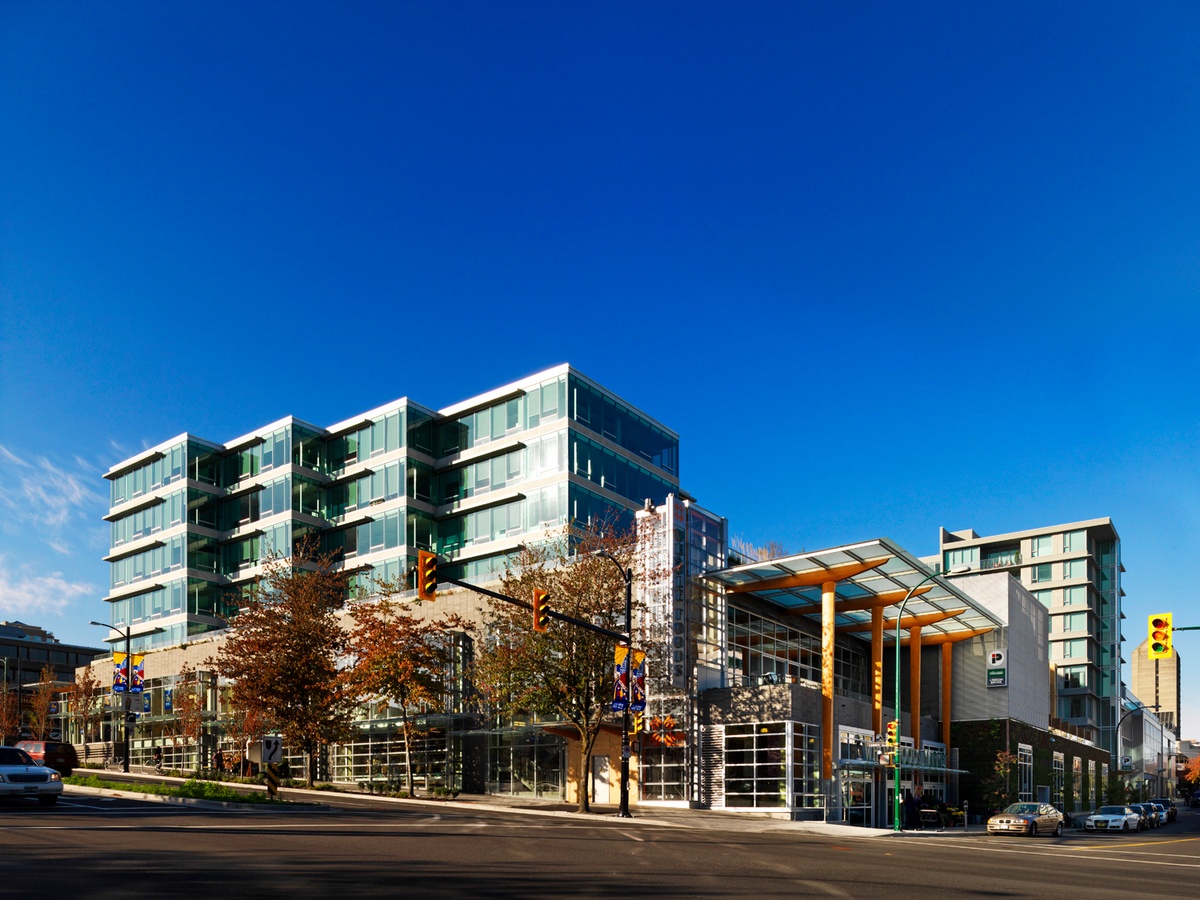

The Crossroads Mixed-use Development is located between 8th Avenue and Broadway along Cambie Street in Vancouver. Due to its size, street frontages, sloping topography and ready transit access, the site is ideally suited to a mix of uses. The project houses large-format food and drug stores, commercial retail units, rental office space, a bank, two restaurants, and market residential uses.

Size

310,000 sq ft

Sustainability Features

Sustainable Site

  • brownfield redevelopment on an urban site surrounded by reasonably high density and mixed use development
  • easy public transportation access, bike storage, changing rooms
  • green (planted) roof areas act to restore bird habitats, maximize open space, collect and control storm water runoff from the site, and minimize the urban heat island effect
  • exterior green wall
  • highly reflective roofing materials

Water Efficiency

  • plant selection/irrigation systems designed to reduce water consumption for irrigation
  • stormwater is collected and stored, so no use of city drinking water for irrigation
  • all toilets, urinals, shower heads, and kitchen and lavatory faucets are water efficient

Energy and Atmosphere

  • high performance building envelope and low-e glazing
  • slab extensions and frit glass for solar shading
  • energy efficient light fixtures, daylight and occupancy sensors
  • energy efficient HVAC equipment, with no CFC-based refrigerants
  • waste heat recovery from the grocery store refrigeration equipment

Indoor Environmental Quality

  • operable windows to allow for some natural ventilation and occupant control
  • an interior green wall provides visual interest and acts as a natural mechanism for air filtration

Audio Tour of this building

This building is part of the City of Vancouver Green Building Audio Tour, a collection of audio recordings about Vancouver's greenest buildings. Each three-minute recording takes the listener on a virtual 'tour' of the building's green design features, guided by the architect or member of the design team. You can listen to them online, via podcast, or via your cell phone by calling 604-673-8150. The Vancouver Green Building Audio Tours were created through a partnership between City of Vancouver Sustainability Office and the Open Green Building Society.

To hear the audio guide for this building click on the player at the top of the left sidebar on this webpage, or dial 604-673-8150 and enter code 08.
